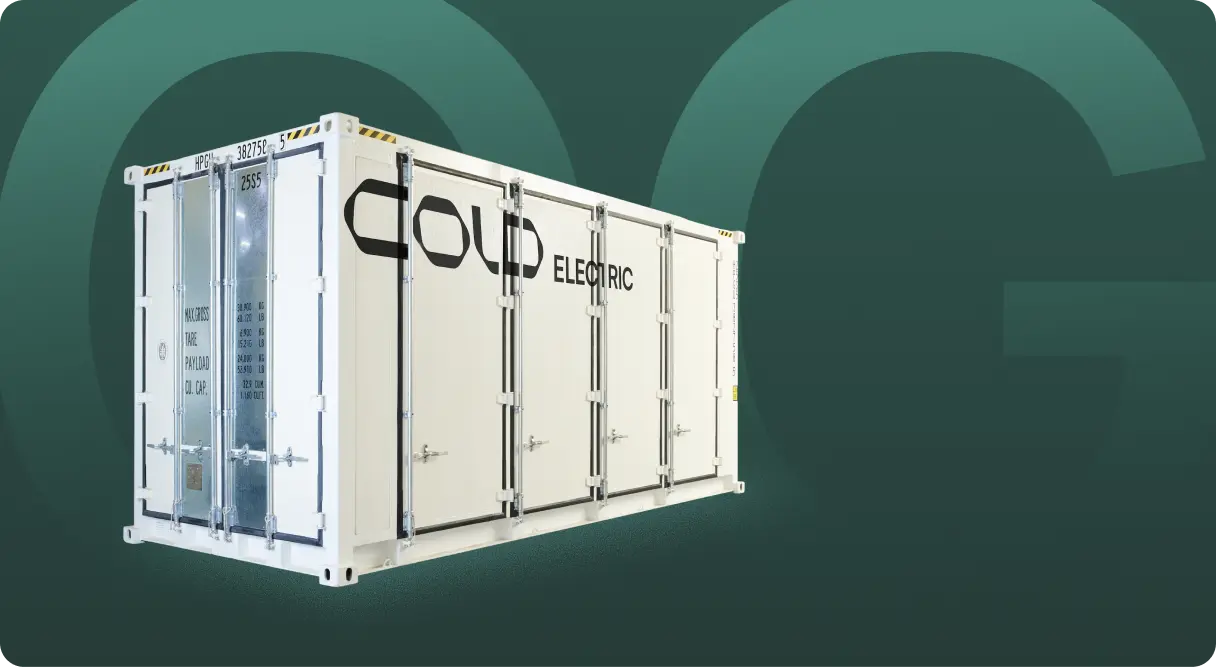

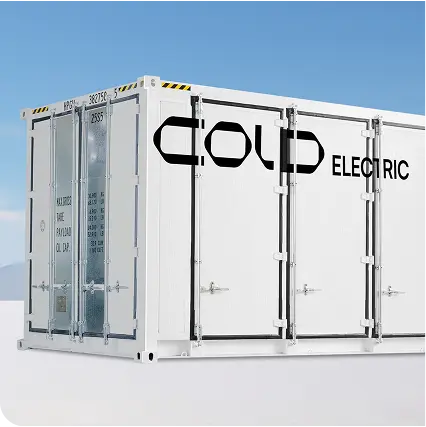

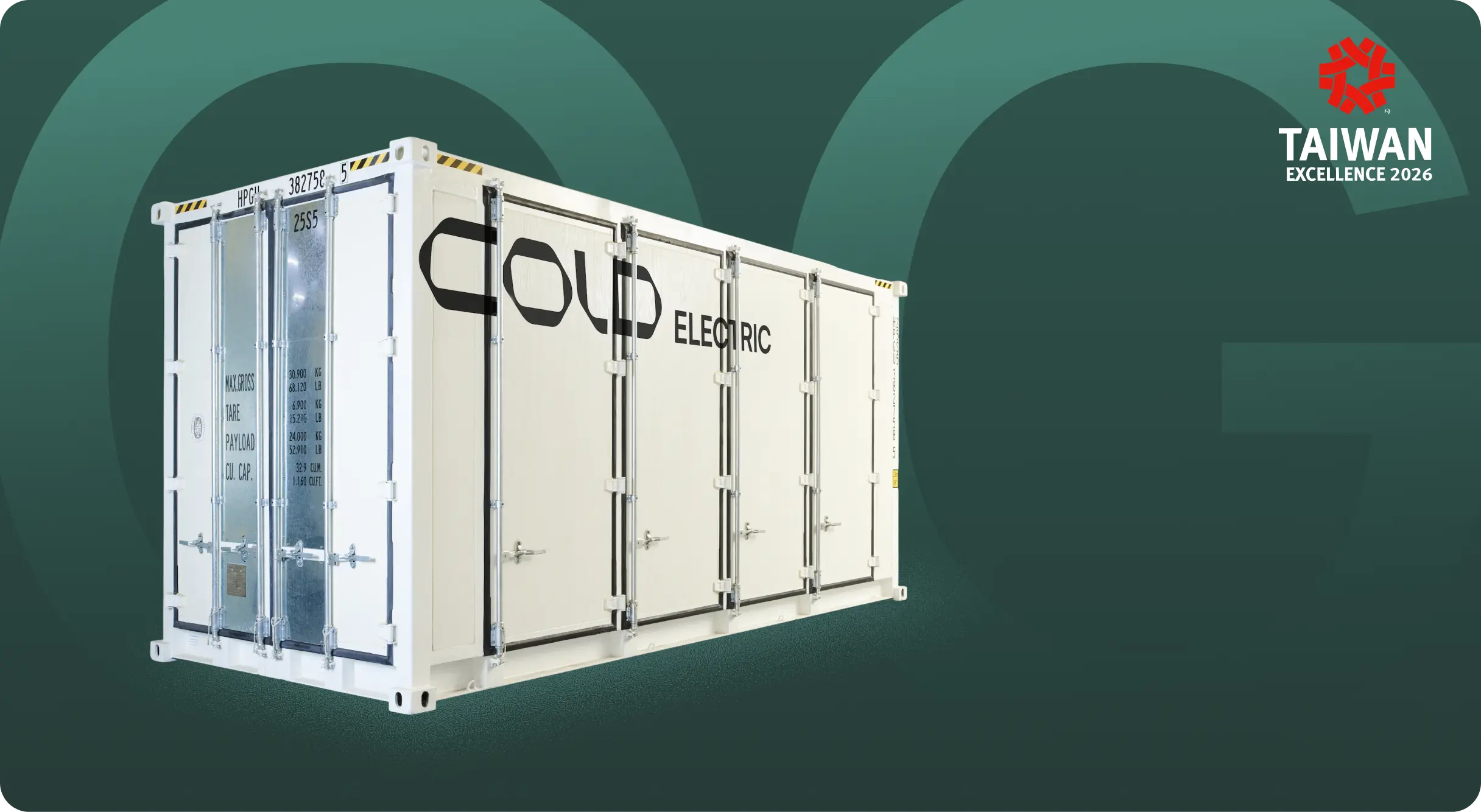

Cold OG

Industrial-Grade Energy Module

Engineered with fire-resistant LFP cells and multi-level protection.
 Certified for UL9540A at the cell, module, and system level.

Specifications

Cold OG

‍

Cold OG model specifications
Model No.C2900C2100C1400
Rated Capacity2,940 kWh2,104 kWh1,400 kWh
Operating Capacity2,500 kWh1,750 kWh1,200 kWh
DC Voltage Range940–1,162 Vdc600–830 Vdc600–830 Vdc
Mass>33 metric tonnes>27 metric tonnes>23 metric tonnes
Dimensions (W × D × H)6.85 × 2.43 × 3.57 m6.85 × 2.43 × 2.95 m6.05 × 2.43 × 2.95 m
Ingress RatingIP54 (cabinet)
CertificationsUL 9540A, UL 2580, UL 1973, IEC 62619, CNS 62619, UN 38.3, IEC 60730-1
Manufactured InTaiwan (including cell grade)

Use Cases

Reduce grid stress by discharging during peak price windows.

Provide turnkey autonomy for remote communities, telecom sites or island resorts.

Seamless fail-over for data centers, hospitals and industrial plants.

Participate in frequency regulation, capacity auctions and wholesale markets.

System Integration

Engineered for direct tie-in to your substation or transformer.

Configurable power conversion settings, protective relays and safety interlocks.

Modbus RTU/TCP, OPC-UA and IEC 61850 support for real-time control.

Live dashboards, automated alerts and over-the-air firmware orchestration via Cold Electric EMS.

How does it work

Battery Deployment, Simplified

Our streamlined four-step process ensures your Cold OG is up and running quickly—and performing at peak efficiency.

01

Assess

We evaluate your site's load profile, backup needs and environmental constraints to size the right ColdZERO model.

02

Plan

We deliver a custom deployment plan covering module count, placement, electrical interconnection and EMS integration.

03

Install

Certified technicians handle delivery, mounting, wiring and commissioning—so you get seamless, code-compliant startup.

04

Manage

Through the Cold Electric EMS portal you get 24/7 monitoring, automated health checks, firmware updates and dedicated support.

Discover Cold Electric’s Other Product Range

Flexible, safety-first battery systems tailored for homes, businesses, and grid-scale deployments.
